SMBs, Reels & Spools

What a spool, a reel and a buoy each do

Three pieces of kit, one job: making sure the boat knows where you are, and that you know how to get back. A buoy marks you on the surface. Line connects you to it. The spool or reel manages that line so it runs out cleanly and comes back without a tangle. Get one of the three wrong and the other two stop helping.

Finger spools

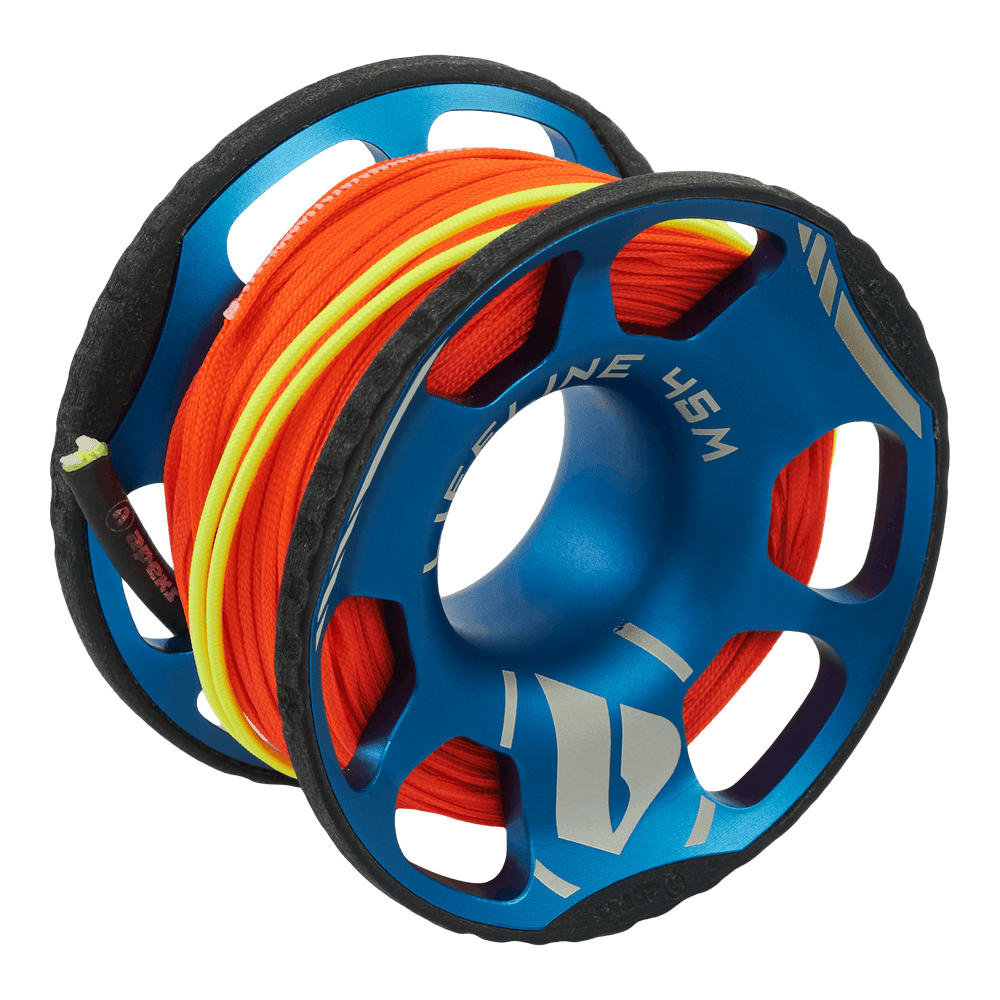

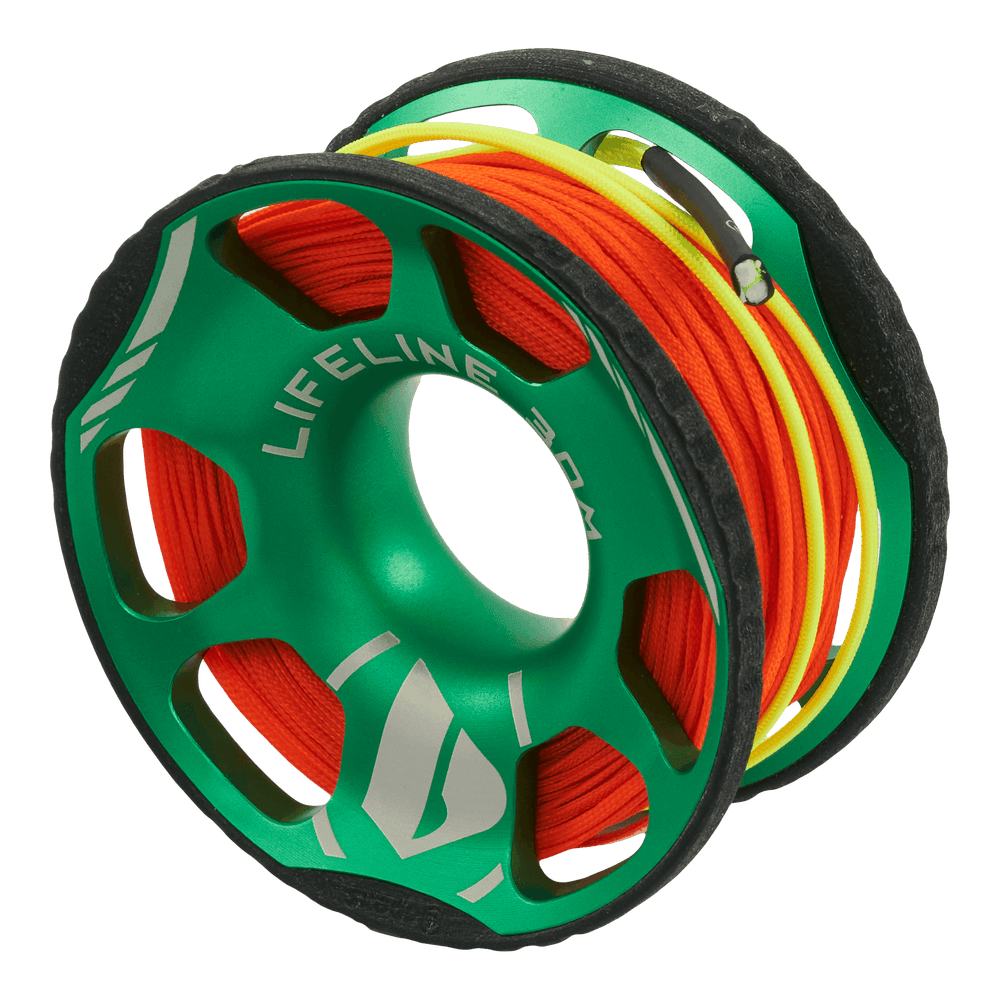

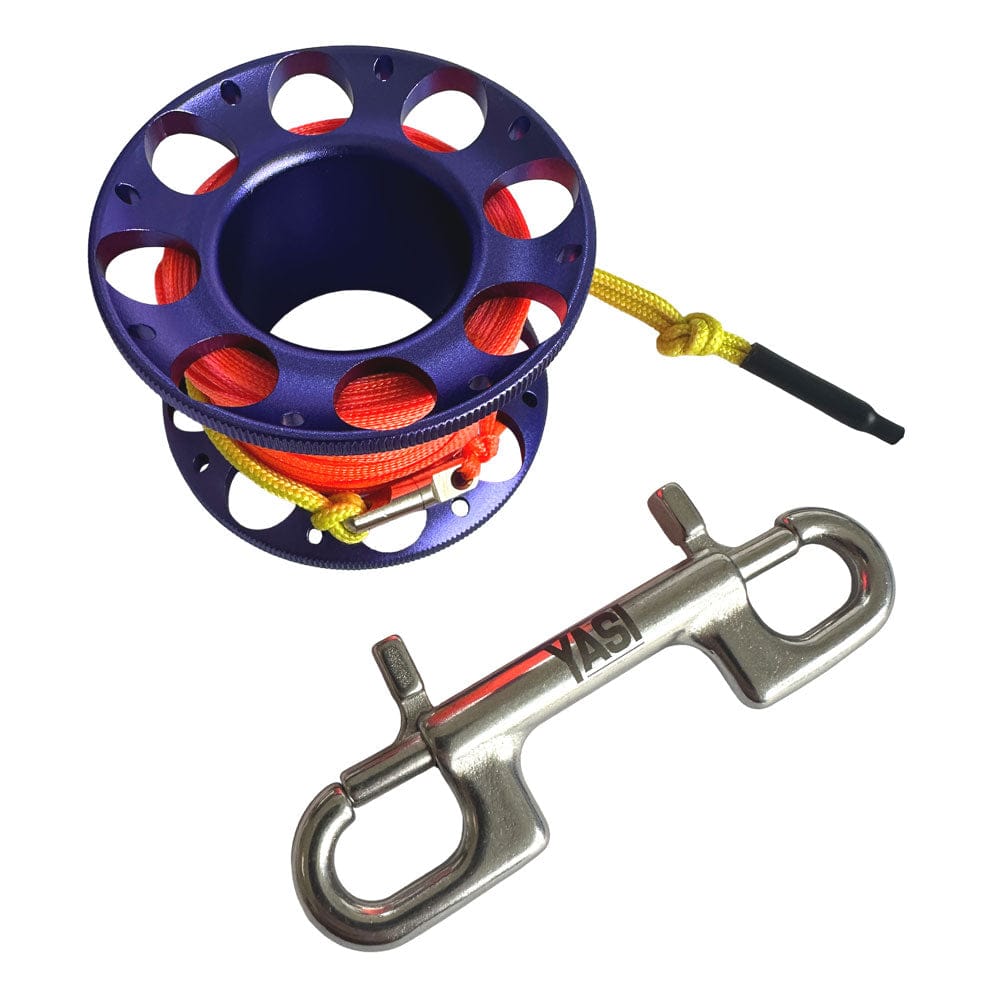

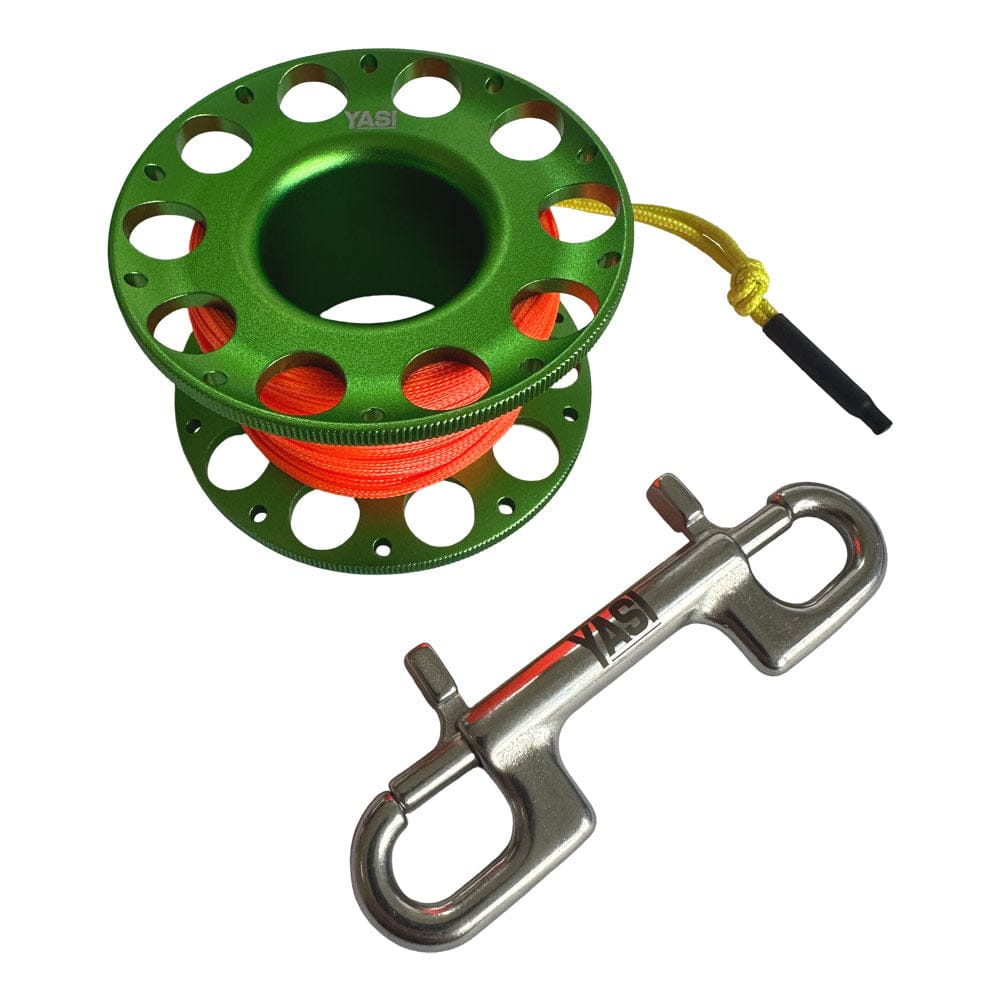

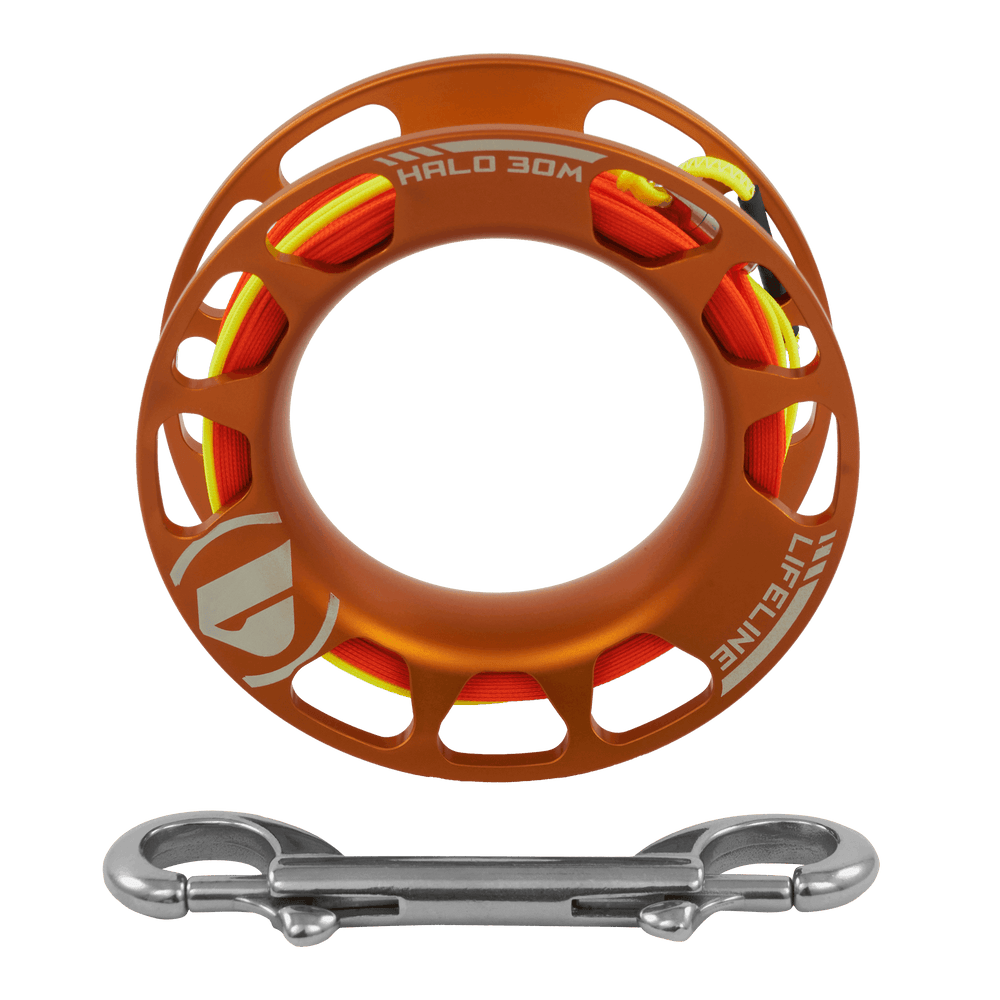

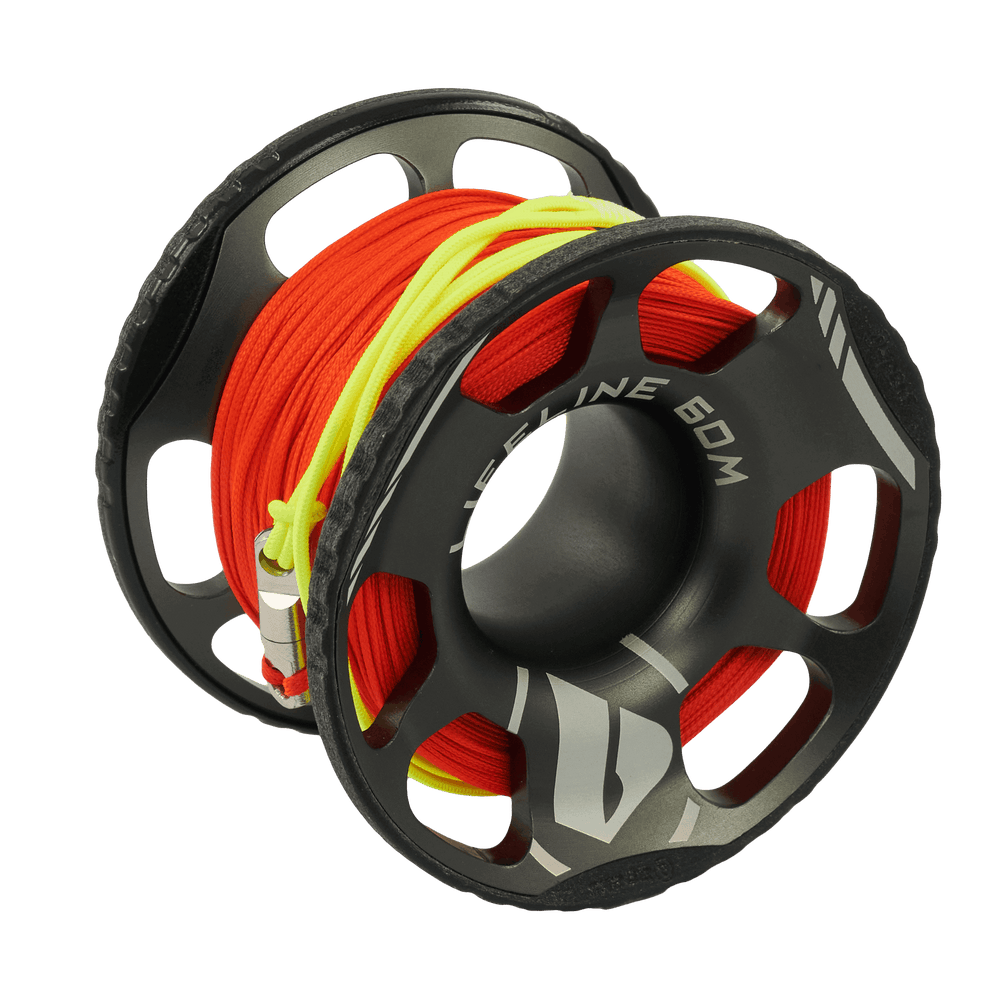

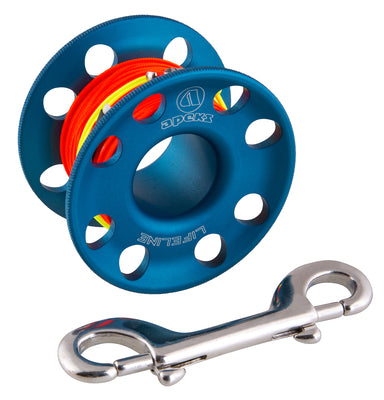

A finger spool is the simplest thing in this collection and the one most divers reach for. No moving parts, nothing to jam. The YASI finger spools are machined from anodised aluminium with a 3cm finger hole and flared sides so you can hold them in thick gloves, and they run a high-visibility orange flat line with a yellow leader section and an anti-tangle swivel. The Apeks LifeLine Spool takes the same idea and colour-codes each length, so you can tell at a glance which one you have clipped on. The Apeks Lifeline Halo Spool is the large-diameter version, built for controlled buoy deployment and quick retrieval with gloves on.

Reels

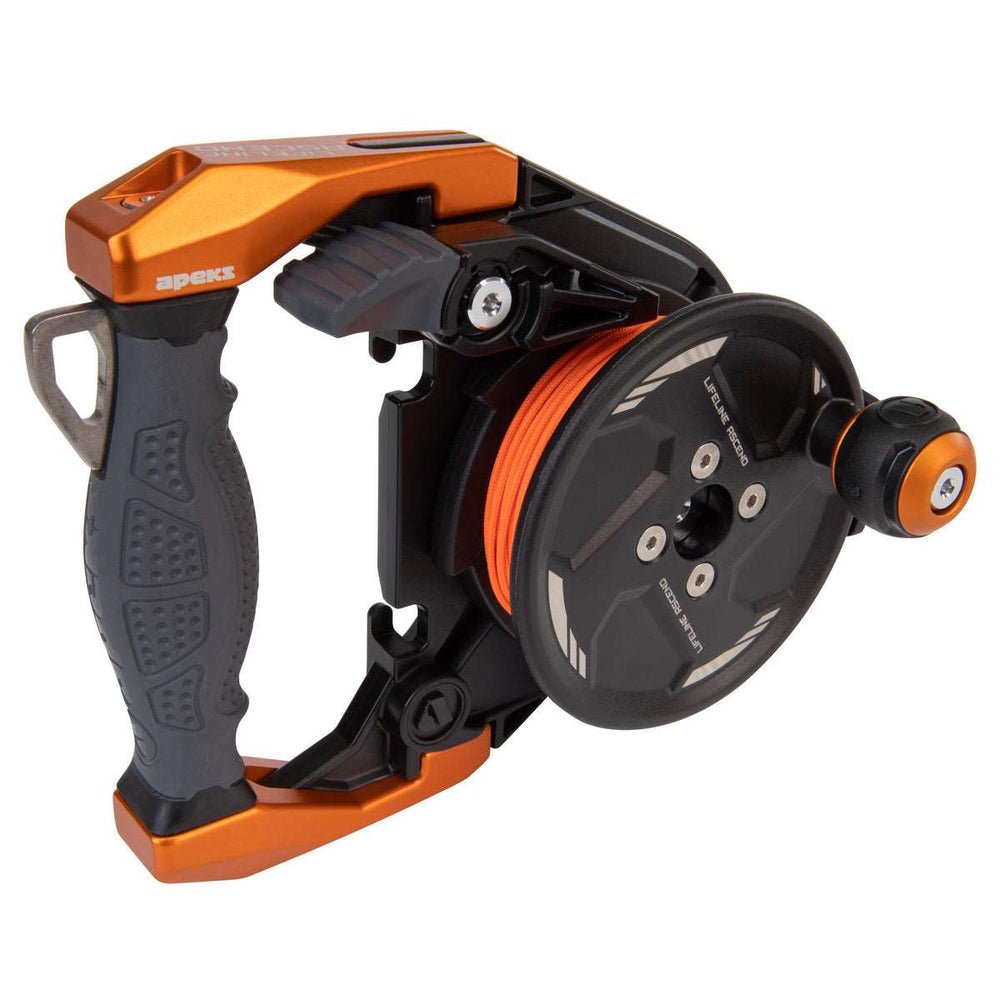

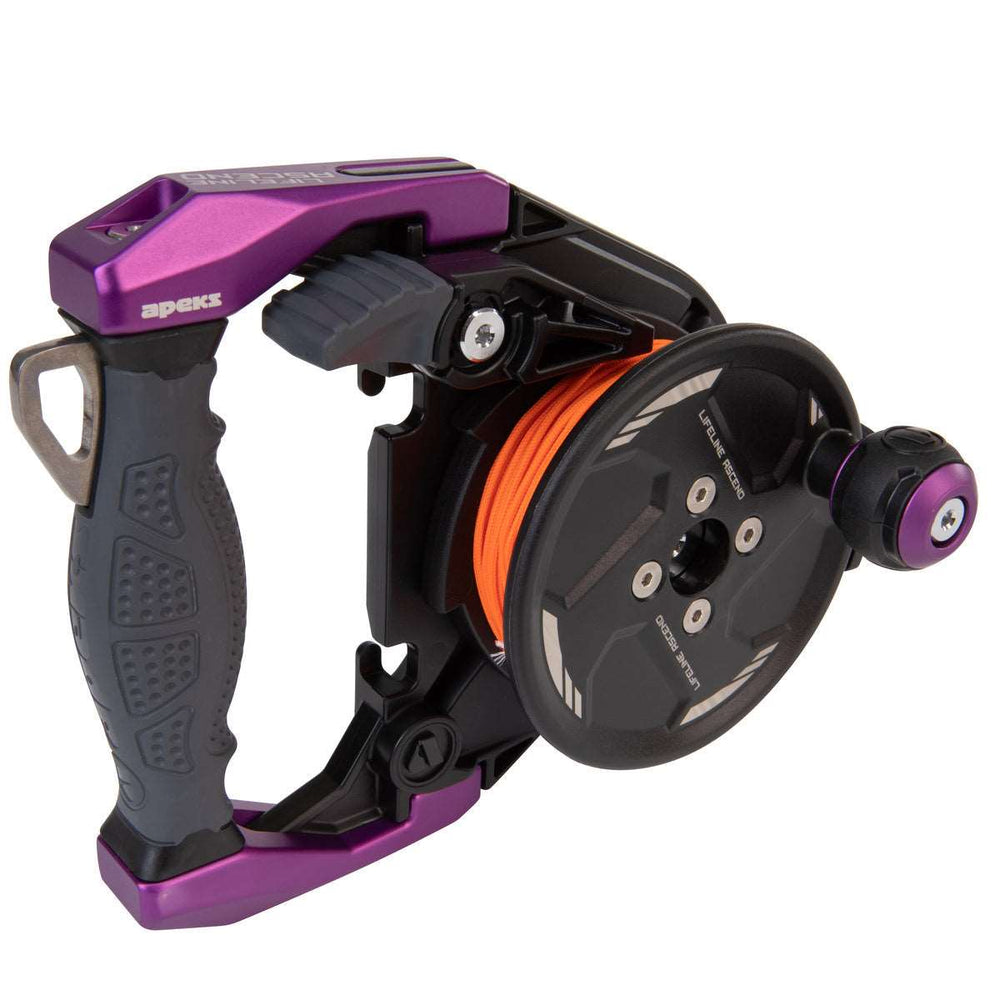

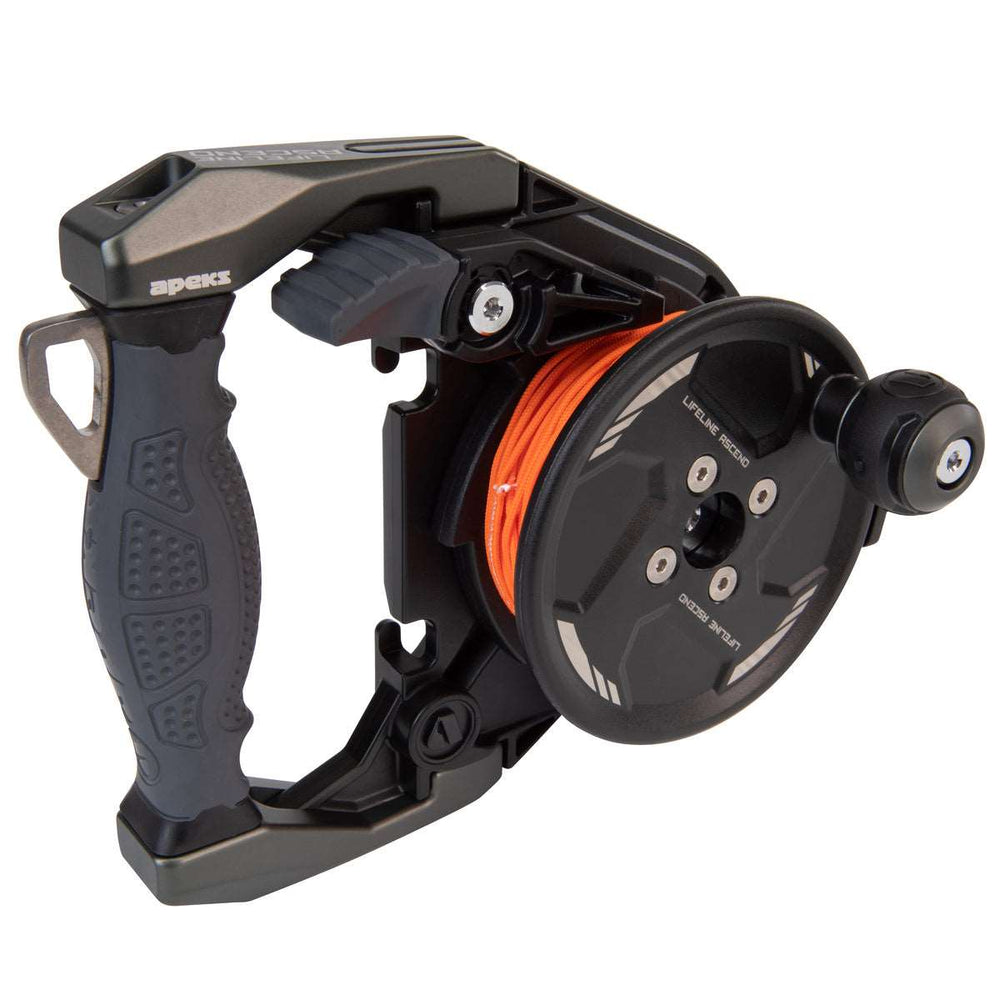

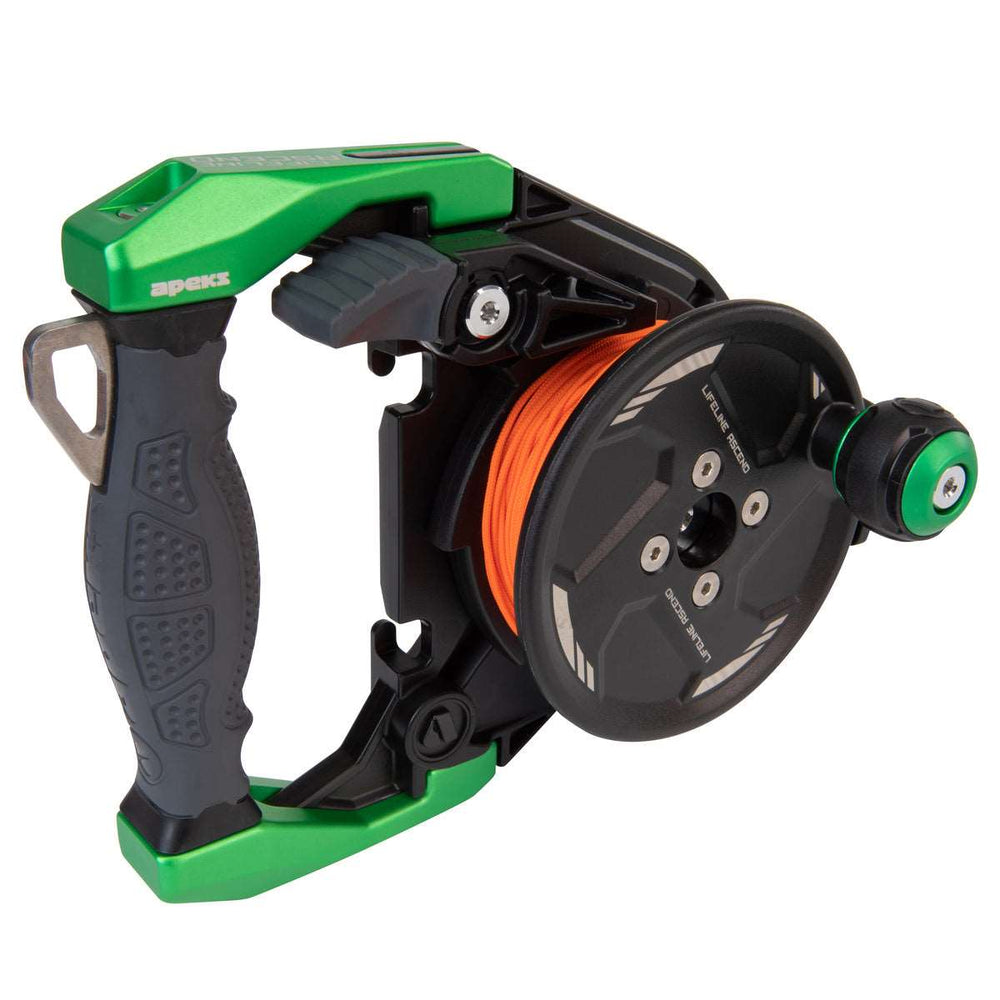

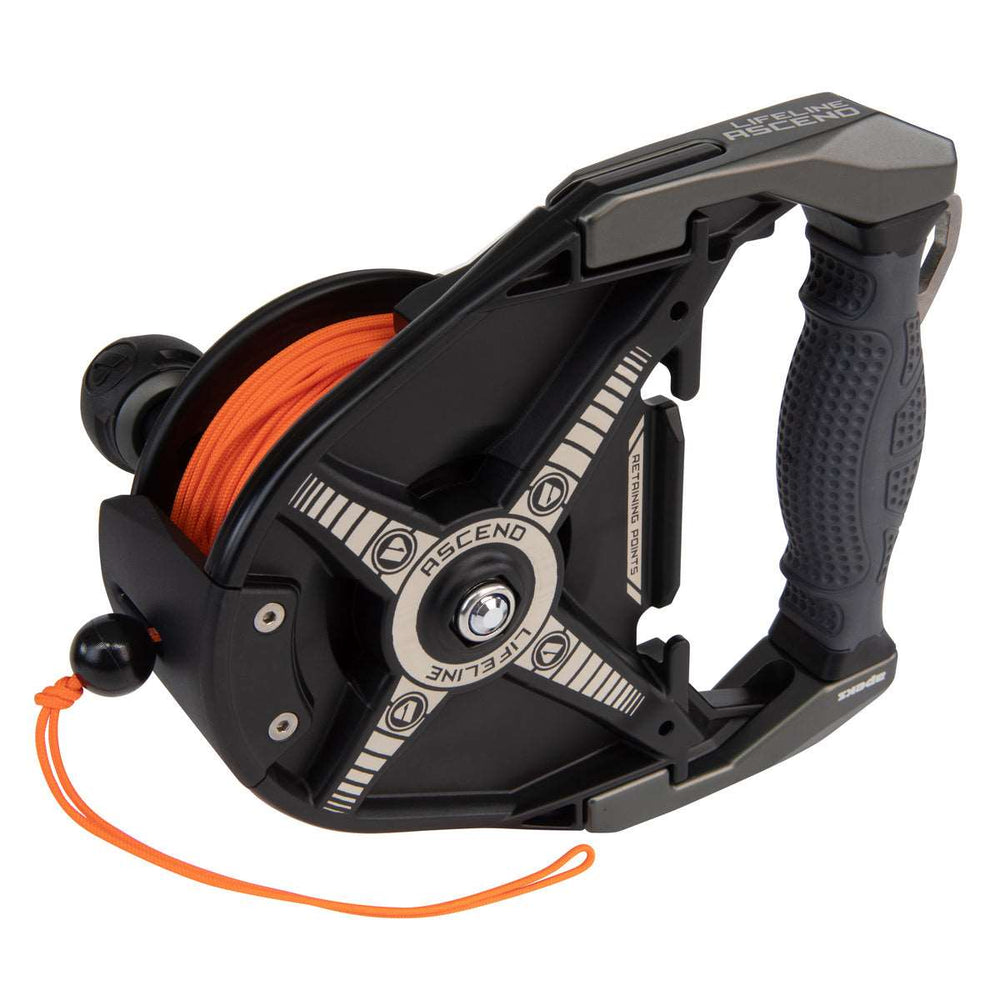

When you need to lock the line off, you need a reel. The Apeks Lifeline Ascend Reel is built around buoy deployment, with an integrated SMB attachment point and a handle you can reconfigure for left or right hand. The Apeks Lifeline Guide Reel is the overhead-environment tool, with an oversized locking screw you can turn in gloves and a textured friction plate for adding tension by hand. The Beaver Puffin Mini Wreck-Line Reel is the compact choice, with a thumb-operated ratchet and a rust-free stainless retaining clip. The Beaver Digi Line Finger Reel sits between the two categories: a micro reel wound with marine-grade cord and supplied with a double-ended bolt snap.

Choosing a surface marker buoy

Closed and open designs

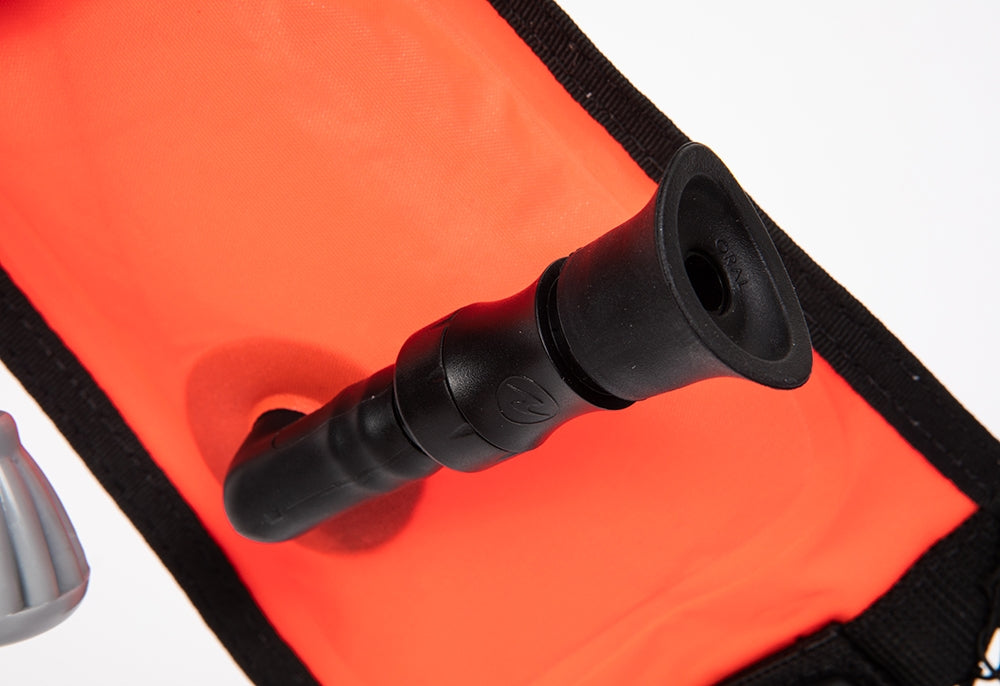

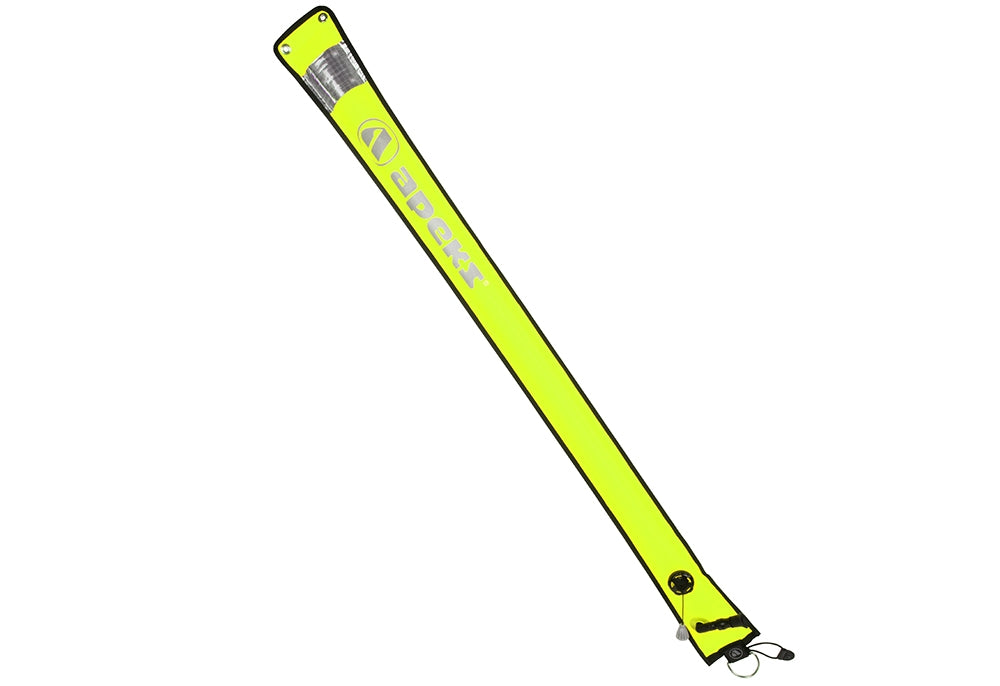

A closed DSMB seals at the bottom and keeps its air once inflated. The XDEEP Closed DSMBs come in 90 cm and 140 cm, both bright orange and both compact enough for a BCD or drysuit pocket. The Apeks Surface Marker Buoy uses a fully closed oral inflator you can work one-handed in gloves, with a stainless D-ring for clipping to your spool and brass eyelets at either end so it can double as a float. An open-bottom buoy such as the XDEEP Opened simple DSMB fills from your exhaust and is fast to deploy, but it will not hold its air if it goes over on the surface.

Height, colour and reflective tape

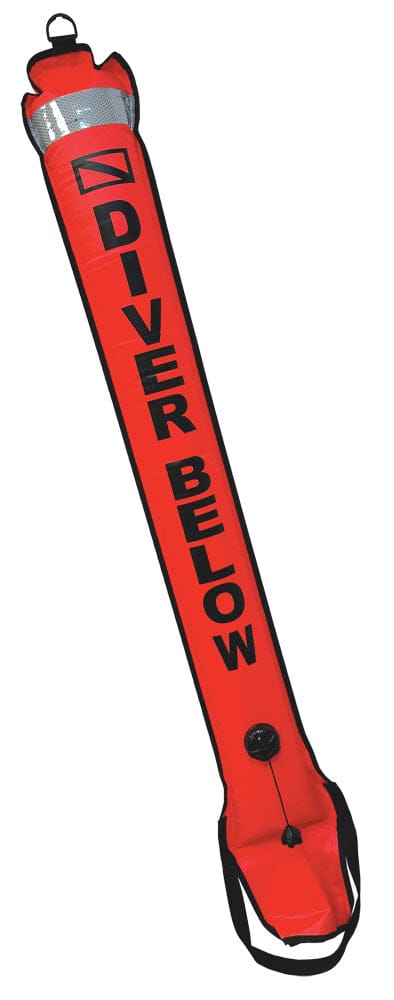

Height is what gets you spotted from a boat deck in a swell, and orange is what gets you spotted at all. The YASI Surface Marker Buoy carries SOLAS-A reflective tape at the top along with diver-below signage and an over-pressure release valve. The Apeks Surface Marker Buoy has SOLAS reflective tape on both sides plus a reflective logo print. The Beaver Surface Marker Tube is the stripped-back option: heavy-duty orange with a self-sealing inflation valve and an elasticated cord that rolls it away small. The Beaver Delayed Surface Marker Buoy With Reel adds a line that changes from orange to yellow, giving you a visual depth cue while you are hanging on it.

The hardware that makes the difference

The parts you notice on a bad day are the small ones. Bolt snaps: YASI fits a 90mm double-ended snap in 316 stainless, Apeks includes a stainless bolt snap with its spools, and Beaver uses rust-free stainless throughout. Swivels: both Apeks and YASI put one between line and spool so the line cannot twist itself into a knot as it pays out. Line attachment: Apeks sews its line to the spool rather than tying it, which takes out the weakest point. Over-pressure relief valves let a closed buoy vent as it rises rather than split. The Halcyon Oral Inflate DAM adds a No-Lock connector so you can inflate orally or from a low-pressure hose, and comes in more than one colour if you want to use colour to signal something specific.

Surface support and open water

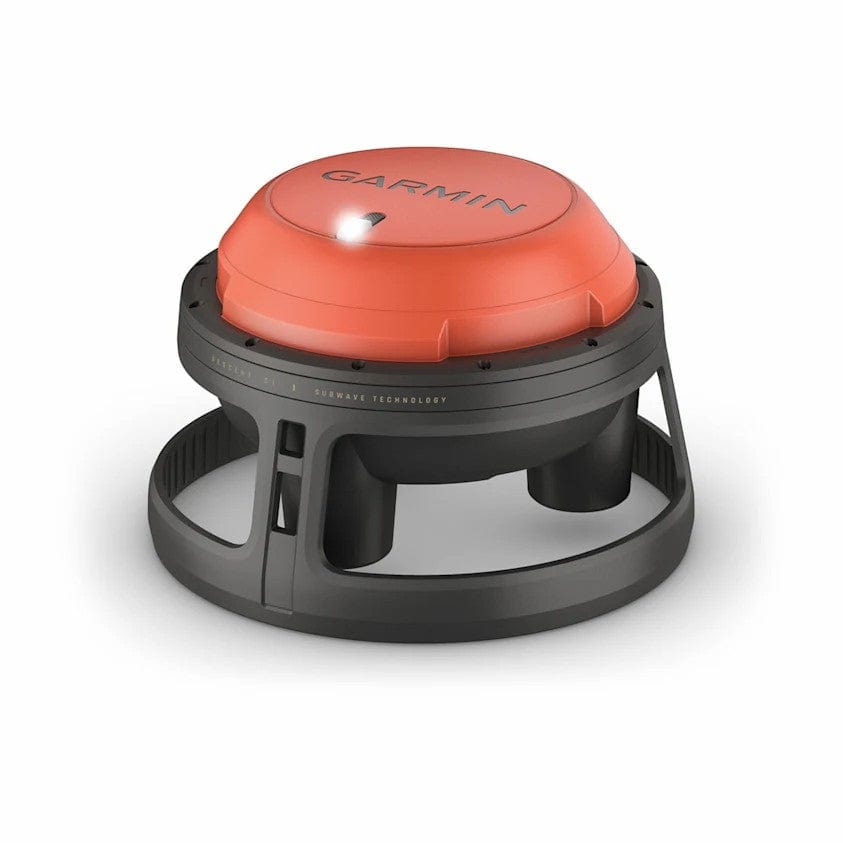

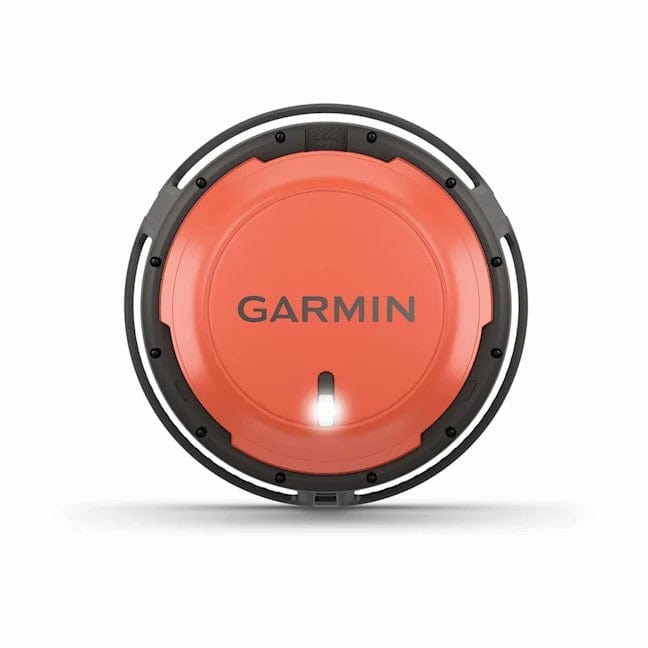

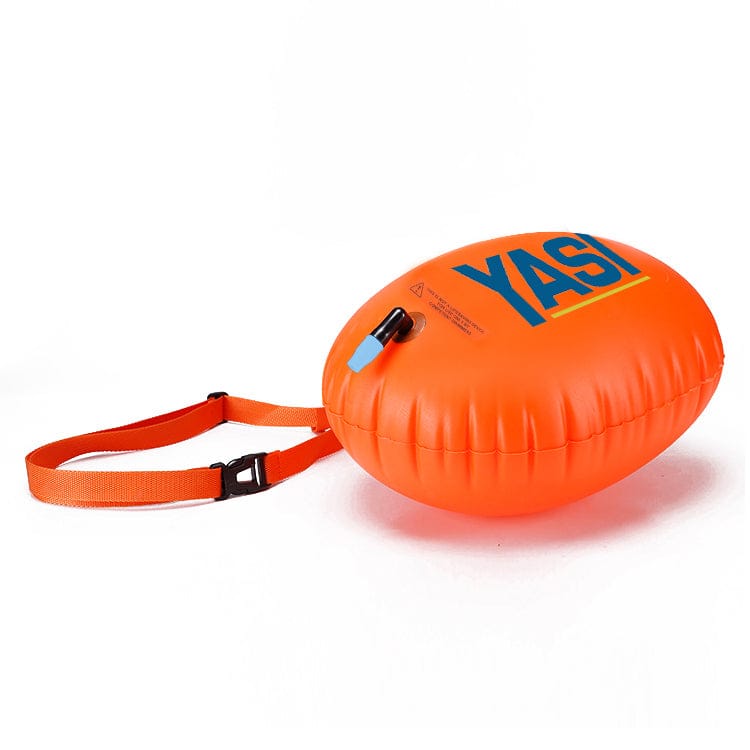

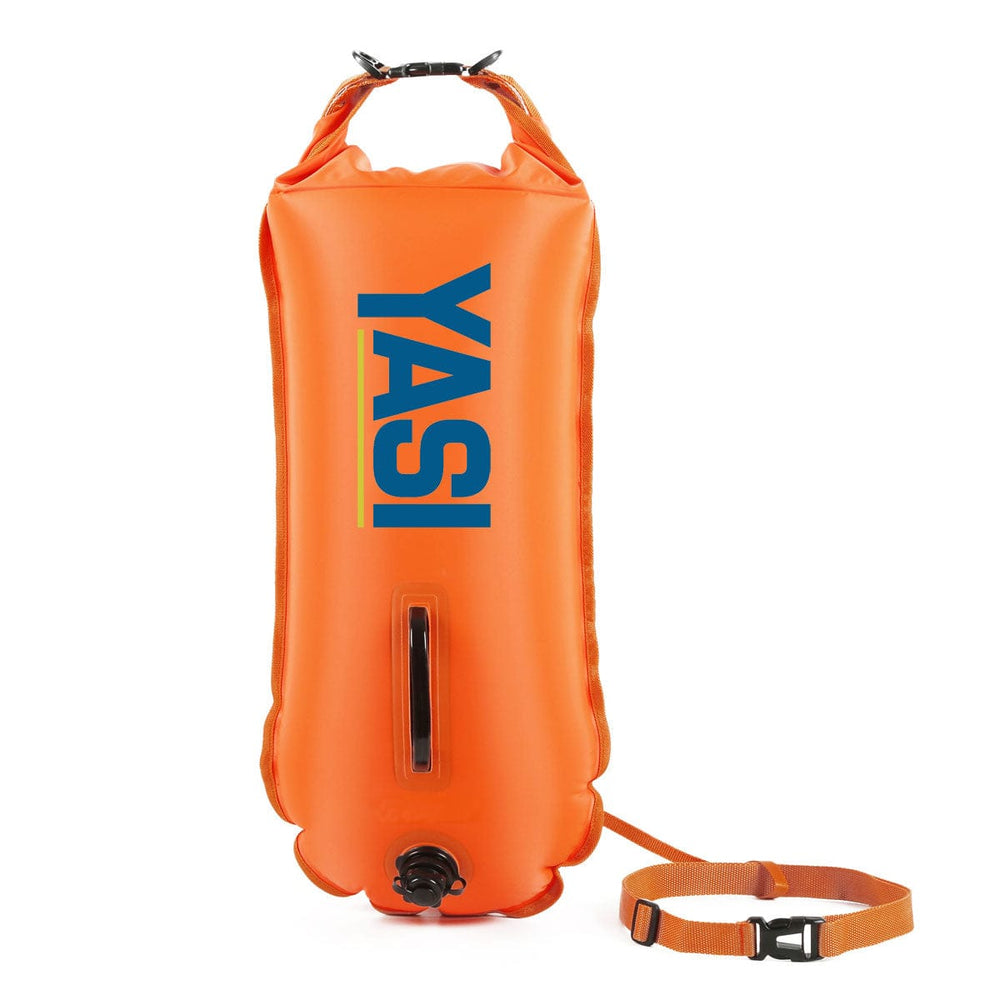

Two products here sit outside the usual spool-and-buoy pairing. The Garmin Descent S1 Buoy is a surface monitoring device rather than a marker: it uses Garmin's SubWave sonar to pass preset messages between divers and up to a surface team, and feeds depth, tank pressure and dive status to the Garmin Dive app. It suits dive schools, charter boats and teams running training. At the other end of the range, the YASI Swim Buoy Tow Float and YASI Dry Bag Tow Float are for swimmers and snorkellers rather than divers: a bright float on an adjustable waist belt, with the dry bag version carrying a 28-litre waterproof compartment for keys, a phone and dry clothes.
